Model T Tire Information

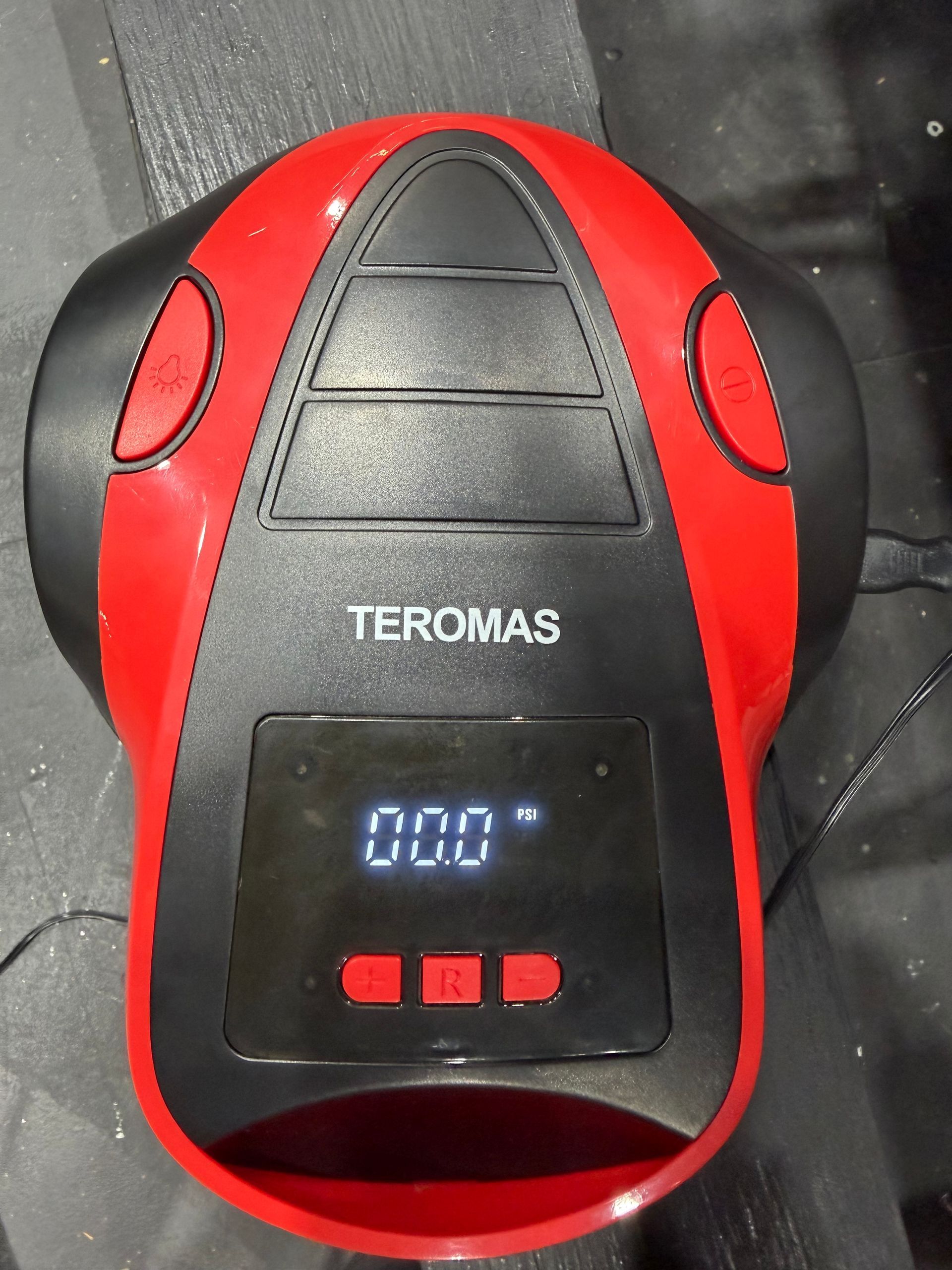

Find the tire inflator under the seat. Once plugged in, press the 'R' button until 'PSI' is displayed.
Prepare Inflator
01

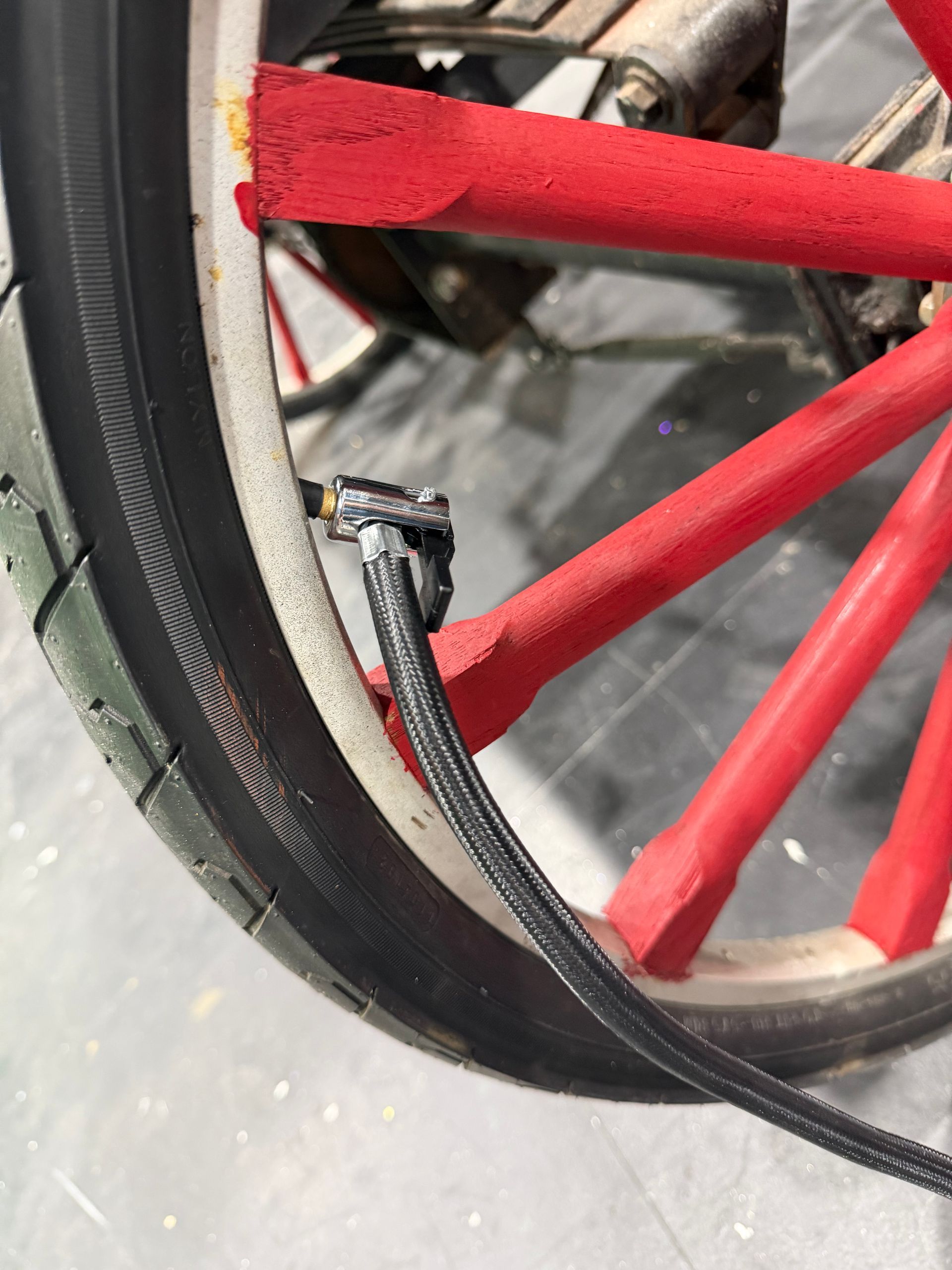

The hose is stored in a channel on the back of the inflator. Attach to the tire stem and close the valve as shown left.
Attach Hose
02

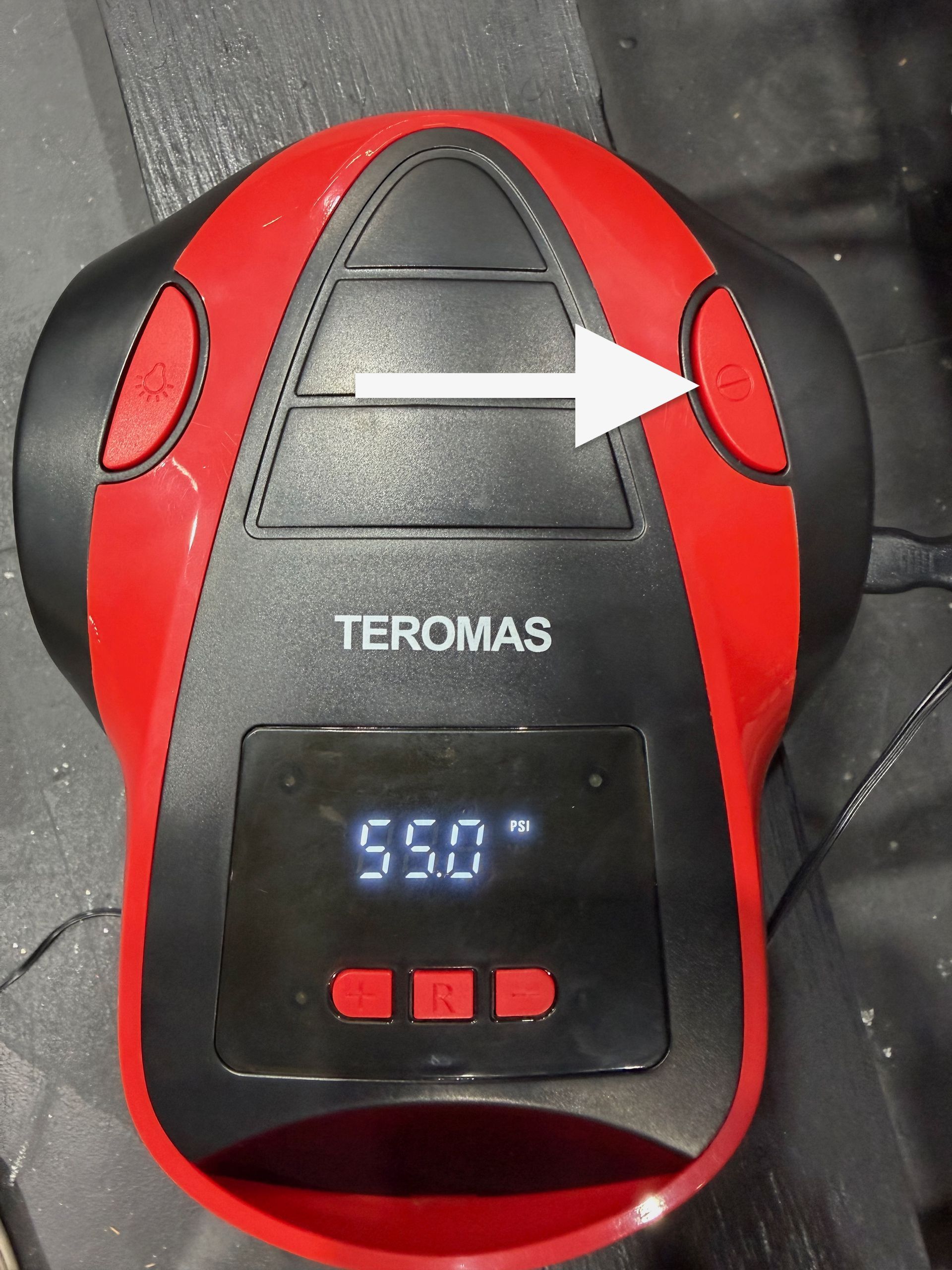

Press the '+' button until the display shows 55 PSI. Press the '-' key (shown left). Once the tire is inflated to 55psi, the inflator will automatically stop. If you misplace a stem cap, there are spares in the tool box under the seat.
Inflate Tires
03

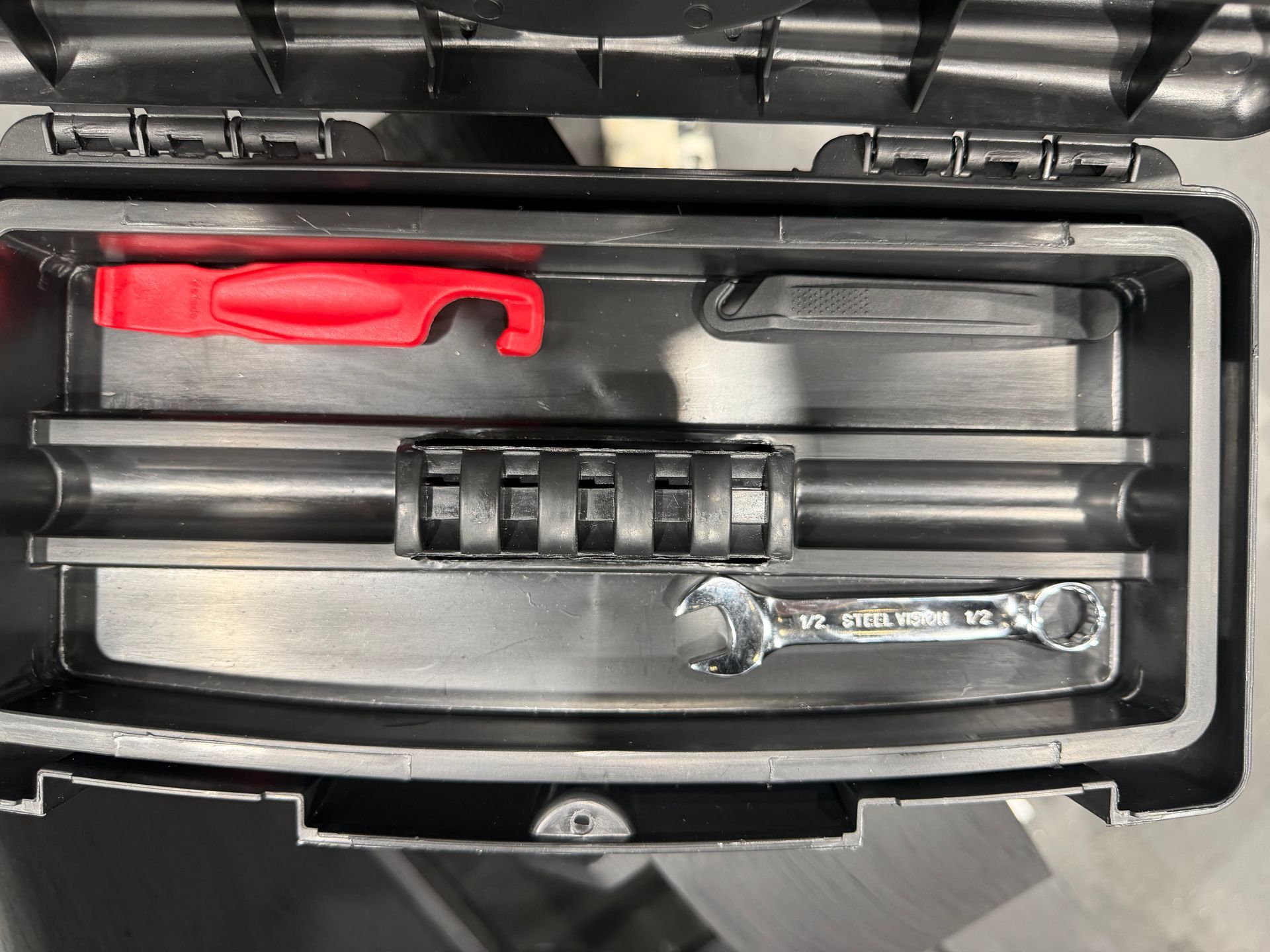

This YouTube link shows a demonstration on how to use the bead breaker and tire lever (red and black plastic tools at top of picture to left) from the toolbox under the seat. Also in the toolbox are a replacement tube and a roll of wheel liner. Prop one end of the Model T on the included dollies (refer to Navigating Sharp Turns page for this procedure) to lift the flat tire wheel off the ground. There is no need to remove the wheel! Only replace the wheel liner if the existing liner is damaged.
